Fused Terminal Block, Automotive Blade-Style, 2 Ways, 20 AWG, 8 AWG, 10 mm², Clamp, 30 A

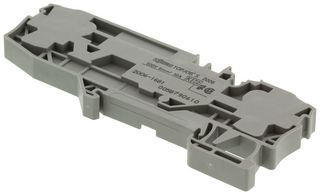

Image is for illustrative purposes only. Please refer to product description.
ManufacturerWAGO
Manufacturer Part No2006-1681
Order Code1869311
Product RangeTOPJOBS 2002
Also Known AsGTIN UPC EAN: 4050821181729
Your Part Number
Technical Datasheet
427 In Stock
775 more incoming. You can reserve stock now
427 Delivery in 3-4 Business Days(UK stock)
| Quantity | Price |
|---|---|
| 1+ | HK$187.450 |
| 10+ | HK$134.180 |
| 100+ | HK$69.860 |
| 250+ | HK$68.470 |
| 500+ | HK$67.070 |
| 1000+ | HK$65.670 |
Price for:Each
Minimum: 1
Multiple: 1
HK$187.45
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
ManufacturerWAGO
Manufacturer Part No2006-1681
Order Code1869311
Product RangeTOPJOBS 2002
Also Known AsGTIN UPC EAN: 4050821181729
Technical Datasheet
No. of Positions2Ways
Wire Size AWG Min20AWG
Wire Size (AWG)20AWG to 8AWG
Wire Size AWG Max8AWG
Conductor Area CSA10mm²
Wire Connection MethodClamp
Rated Current30A
Rated Voltage800V
Fuse Size HeldBlade-Style Fuses
Product RangeTOPJOBS 2002
SVHCNo SVHC (21-Jan-2025)
Product Overview
The 2006-1681 from WAGO is a 2-conductor fuse terminal block for automotive blade-style fuses; with test option; without blown fuse indication
- DIN 35 rail-mounted fused terminal block with PUSH-IN CAGE CLAMP® technology
- Up to 30% smaller, significant cost savings through the reduction of panel space, smaller enclosures & junction boxes
- Push-in wire termination for faster installation
- Voltage rating of 500V and current of 30A
- Top entry wiring
- for Automotive blade-style fuses
- Grey
Applications
Industrial Automation Control, Factory Automation, Utilities, Motor Drive & Control
Technical Specifications
No. of Positions
2Ways
Wire Size (AWG)
20AWG to 8AWG
Conductor Area CSA
10mm²
Rated Current
30A
Fuse Size Held
Blade-Style Fuses
SVHC
No SVHC (21-Jan-2025)
Wire Size AWG Min
20AWG
Wire Size AWG Max
8AWG
Wire Connection Method
Clamp
Rated Voltage
800V
Product Range
TOPJOBS 2002
Technical Docs (1)
Associated Products
6 Products Found
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:China
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:China
Country in which last significant manufacturing process was carried out
Tariff No:85369010
US ECCN:EAR99
EU ECCN:NLR
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (21-Jan-2025)
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.017237
