2773-404

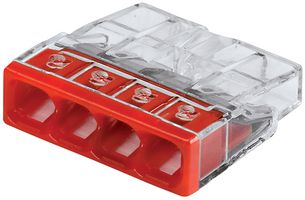

Standard Terminal Block, 2773 Series, 4 Contacts, Push In, Cable Mount, 12 AWG
Image is for illustrative purposes only. Please refer to product description.
| Manufacturer | WAGO |
|---|---|
| Manufacturer Part No | 2773-404Copy |
| Manufacturer Standard Lead Time | 12 weeks |
| Order Code | 3889693 |
| Product Range | 2773 Series |
| Your Part Number | |
| Technical Datasheet |
132 In Stock
Need more?
132 Delivery in 3-4 Business Days(UK stock)
| Quantity | Price |
|---|---|
| 10+ | HK$4.190 |
| 100+ | HK$3.720 |
| 500+ | HK$3.380 |
| 1000+ | HK$3.210 |
| 2500+ | HK$3.080 |
| 5000+ | HK$3.010 |
Price for:Each
Minimum: 10
Multiple: 10
HK$41.90
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
| Manufacturer | WAGO |
|---|---|
| Manufacturer Part No | 2773-404Copy |
| Manufacturer Standard Lead Time | 12 weeks |
| Order Code | 3889693 |
| Product Range | 2773 Series |
| Technical Datasheet | |
| Product Range | 2773 Series |
| No. of Contacts | 4Contacts |
| Pitch Spacing | - |
| Connector Type | Push In |
| Connector Mounting | Cable Mount |
| Wire Size AWG Max | 12AWG |
| Wire Size AWG Min | 20AWG |
| Contact Plating | Copper Plated Contacts |
| Contact Material | Copper |
| SVHC | No SVHC (04-Feb-2026) |
Product Overview
- Push-in termination of up to eight solid and stranded conductors
- Wire size: 0.75mm² to 4mm² (Solid) and 1.5mm² to 4mm²
- Nominal voltage: 450V
- Rated current: 32A
- Dimensions (LxWxH): 18.6x21.2x6.3mm
Technical Specifications
| Product Range | 2773 Series |
|---|---|
| Pitch Spacing | - |
| Connector Mounting | Cable Mount |
| Wire Size AWG Min | 20AWG |
| Contact Material | Copper |
| No. of Contacts | 4Contacts |
|---|---|
| Connector Type | Push In |
| Wire Size AWG Max | 12AWG |
| Contact Plating | Copper Plated Contacts |
| SVHC | No SVHC (04-Feb-2026) |
Technical Docs (1)
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | Germany Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 85369010 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | No SVHC (04-Feb-2026) |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .25 |
