WXD 2010
Rework Station, Dual Channel, 550°C, 200W, 230VAC, EU/UK Plug

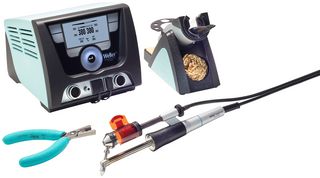

Image is for illustrative purposes only. Please refer to product description.
ManufacturerWELLER
Manufacturer Part NoWXD 2010
Order Code2629093
Also Known AsT0053428399N, GTIN UPC EAN: 4003019427857
Your Part Number
Technical Datasheet
5 In Stock
1 more incoming. You can reserve stock now
5 Delivery in 3-4 Business Days(UK stock)
| Quantity | Price |
|---|---|
| 1+ | HK$13,552.800 |
Price for:Each
Minimum: 1
Multiple: 1
HK$13,552.80
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
ManufacturerWELLER
Manufacturer Part NoWXD 2010
Order Code2629093
Also Known AsT0053428399N, GTIN UPC EAN: 4003019427857
Technical Datasheet
Supply Voltage VAC230V
Heat Temperature Max550°C
Output Power200W
Kit ContentsWXD2 Power Unit, WXDP120 Desoldering Iron, WDH70 Safety Rest
Product Range-
Plug TypeEU, UK
SVHCNo SVHC (17-Dec-2015)
Product Overview
WXD 2010 is a 2 channels desoldering station WXD 2 with desoldering iron WXDP 120. It features USB interface in front of firmware updates, parameterization and monitoring USB interface and supports all standard USB flash drive types.
- Soldering and desoldering tools with intelligent WX technology
- Connection to external compressed air supply required
- Energy effective : automatic stand-by mode for tools
- Patented, ESD safe glass display, simple and fast setting of soldering parameter
- 135mm height, 174mm length
- 35l/min air consumption, air pressure range from 58 to 87psi
- Via 3.5mm pawl socket on back of unit equipotential bonding socket
- 0.7bar noise level (distance 1m) dB(A)
- 200W (255W) power, ±9°C temperature accuracy, 230V voltage
- Temperature range from 50 to 550°C
Contents
2 channel power unit (WXD 2), PDN pliers for changing nozzles.
Technical Specifications
Supply Voltage VAC
230V
Output Power
200W
Product Range
-
SVHC
No SVHC (17-Dec-2015)
Heat Temperature Max
550°C
Kit Contents
WXD2 Power Unit, WXDP120 Desoldering Iron, WDH70 Safety Rest
Plug Type
EU, UK
Technical Docs (2)
Associated Products
1 Product Found
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:Mexico
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:Mexico
Country in which last significant manufacturing process was carried out
Tariff No:85151990
US ECCN:EAR99
EU ECCN:NLR
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (17-Dec-2015)
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):7
