618009231421
D Sub Connector, DB9, Standard, Plug, WR-DSUB, 9 Contacts, DE, Solder

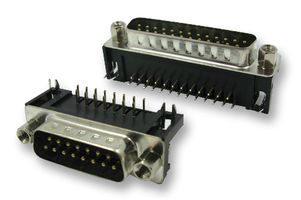

Image is for illustrative purposes only. Please refer to product description.
ManufacturerWURTH ELEKTRONIK
Manufacturer Part No618009231421
Order Code1841198
Product RangeWR-DSUB
Technical Datasheet
138 In Stock
100 more incoming. You can reserve stock now
138 Delivery in 3-4 Business Days(UK stock)
| Quantity | Price |
|---|---|
| 1+ | HK$26.230 |
| 10+ | HK$24.860 |
| 50+ | HK$22.140 |
| 100+ | HK$19.270 |
| 250+ | HK$16.550 |
| 500+ | HK$14.710 |
Price for:Each
Minimum: 1
Multiple: 1
HK$26.23
Add Part No. / Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerWURTH ELEKTRONIK
Manufacturer Part No618009231421
Order Code1841198
Product RangeWR-DSUB
Technical Datasheet
D Sub Connector TypeStandard
Product RangeWR-DSUB
No. of Contacts9Contacts
D Sub Shell SizeDE
Contact Termination TypeSolder
Connector MountingThrough Hole Mount Right Angle
Contact MaterialCopper Alloy
Contact PlatingGold Plated Contacts
Connector Body MaterialSteel Body
SVHCLead (21-Jan-2025)
Product Overview
The 618009231421 is a 9-pin 10.3mm right angle PCB D-sub male Connector with hex screw and stamped contacts. It has copper alloy contact, selective gold contact plating with a PBT insulator and steel, nickel-plating shielding.
- UL94V-0 Flammability rating
- 3 as per IEC 60 603-13 quality class
- 3A Current rating
- 30mΩ Contact resistance
- 5000MΩ Insulation resistance
- -40 to 85°C Operating temperature
Applications
Communications & Networking, Computers & Computer Peripherals, Industrial
Technical Specifications
D Sub Connector Type
Standard
Product Range
WR-DSUB
D Sub Shell Size
DE
Connector Mounting
Through Hole Mount Right Angle
Contact Plating
Gold Plated Contacts
SVHC
Lead (21-Jan-2025)
Gender
Plug
No. of Contacts
9Contacts
Contact Termination Type
Solder
Contact Material
Copper Alloy
Connector Body Material
Steel Body
Technical Docs (3)
Alternatives for 618009231421
1 Product Found
Associated Products
2 Products Found
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:Taiwan
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:Taiwan
Country in which last significant manufacturing process was carried out
Tariff No:85366990
US ECCN:EAR99
EU ECCN:NLR
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:Lead (21-Jan-2025)
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.00878
