Development Kit, Virtex-7 FPGA, Connectivity Evaluation, PCI-E, Vivado

DK-V7-VC709-G - Development Kit, Virtex-7 FPGA, Connectivity Evaluation, PCI-E, Vivado

Image is for illustrative purposes only. Please refer to product description.

Manufacturer Part No:
Order Code:

Product Information

Want to see similar products? Simply select your required attributes below and hit the button ×







Dev Board XC7VX690T-2FFG1761C, 4x 10Gb Ethernet TX/RX Modules, MEMS Oscillator, Vivado Design Suite


Find similar products Choose and modify the attributes above to find similar products.

Technical Docs (1)

Product Overview

The DK-V7-VC709-G from Xilinx is a Virtex®-7 FPGA VC709 connectivity kit. This Virtex®-7 FPGA VC709 connectivity kit is a 40Gb/s platform for high bandwidth and high performance applications containing all the necessary hardware, tools and IP to power quickly through evaluation and development of connectivity systems. This includes a 40Gb/s targeted reference design featuring PCI Express Gen 3, DMA IP core from Northwest Logic, 10GBase-R, AXI and virtual FIFO memory controller interfacing to an external DDR3 memory. To control and monitor this design kit includes a connectivity GUI built on Fedora Live OS which includes all the software drivers. Additionally kit contains two fibre optic cables and four transceiver modules leveraged by this design.
  • 40Gb/s connectivity platform for bandwidth, performance applications using Virtex-7 VX690T FPGAs
  • Hardware, design tools, IP and pre-verified reference designs
  • Demonstrates an featuring 10GBase-R interfacing to external DDR3 memory
  • Advanced memory interface with two 4GB DDR3 SODIM memory up to 933MHz/1866Mbps
  • Enabling serial connectivity with PCIe Gen3x8, 4 SFP+, SMA Pairs and UART
  • Supports embedded processing with MicroBlaze, soft 32bit RISC
  • Develop networking and other serial applications with 4 SFP/SFP+ ports
  • Expand I/O with the FPGA Mezzanine Card (FMC) interface
  • Fixed Oscillator with differential 200MHz output clocking
  • On-board JTAG configuration circuitry to enable configuration over USB


Embedded Design & Development

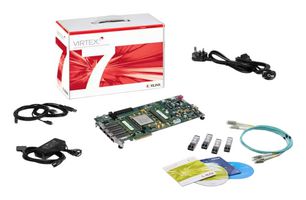

VC709 evaluation board, Four 10Gb Ethernet transceiver modules, Micro USB cable, Power adapter, Programmable MEMS oscillators, Full seat Vivado® design suite: design edition, Two fibre optic patch cables, Mini USB cable, Power cord, Power delivery solutions.


Please note this product is Non-Cancellable and Non-Returnable (NCNR)


Warranty Information: Xilinx development boards, kits and programming cables have a warranty of ninety (90) days from date of purchase.
