MMF881A315

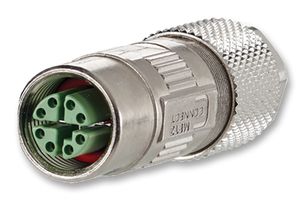

Sensor Connector, M12, Female, 8 Positions, Crimp Socket, Straight Cable Mount
Image is for illustrative purposes only. Please refer to product description.
| Manufacturer | METZ CONNECT |
|---|---|
| Manufacturer Part No | MMF881A315Copy |
| Manufacturer Standard Lead Time | 6 weeks |
| Order Code | 2442803 |
| Your Part Number | |
| Technical Datasheet |
12 In Stock
Need more?
12 Delivery in 3-4 Business Days(UK stock)
| Quantity | Price |
|---|---|
| 1+ | HK$488.290 |
| 5+ | HK$451.670 |
| 10+ | HK$415.050 |
| 25+ | HK$388.320 |
| 50+ | HK$370.520 |
| 100+ | HK$352.860 |
Price for:Each
Minimum: 1
Multiple: 1
HK$488.29
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
| Manufacturer | METZ CONNECT |
|---|---|
| Manufacturer Part No | MMF881A315Copy |
| Manufacturer Standard Lead Time | 6 weeks |
| Order Code | 2442803 |
| Technical Datasheet | |
| Product Range | - |
| Sensor Connector Size | M12 |
| No. of Positions | 8 Positions |
| Sensor Contact Type | Crimp Socket |
| Sensor Connector Mounting | Straight Cable Mount |
| IP / NEMA Rating | IP65, IP67 |
| Connector Coding | X Coded |
| Connector Body Material | Zinc Body |
| Contact Material | Brass |
| Contact Plating | Gold |
| Current Rating | 500mA |
| Voltage Rating | 48V |
| SVHC | No SVHC (25-Jun-2025) |
Product Overview
The MMF881A315 is a 8-pole M12 X-coded shielded female Circular Connector with socket-type gold-plated brass contacts. It is suitable for 10GBit as per IEEE 802.3an and field assembly Cat.6A per IEC/PAS 61076-2-109.
- Jack consists of only two parts
- Easy assembly without special tools
- Industry-compatible zinc die-cast housing
- 0.5A Current carrying capacity
- 48V Rated voltage
- 5mΩ Maximum through resistance
- 100MΩ Minimum insulation resistance
- 0.4 to 0.64mm Solid copper wire diameter
- 0.48 to 0.76mm Stranded copper wire diameter
- Up to 1.6mm core diameter
- 5 to 9.7mm Overall cable diameter
- IP67 Protection
Applications
Communications & Networking
Technical Specifications
| Product Range | - |
|---|---|
| No. of Positions | 8 Positions |
| Sensor Connector Mounting | Straight Cable Mount |
| Connector Coding | X Coded |
| Contact Material | Brass |
| Current Rating | 500mA |
| SVHC | No SVHC (25-Jun-2025) |
| Sensor Connector Size | M12 |
|---|---|
| Sensor Contact Type | Crimp Socket |
| IP / NEMA Rating | IP65, IP67 |
| Connector Body Material | Zinc Body |
| Contact Plating | Gold |
| Voltage Rating | 48V |
Technical Docs (2)
Alternatives for MMF881A315
1 Product Found
Associated Products
8 Products Found
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | Germany Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 85366990 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | No SVHC (25-Jun-2025) |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .02903 |
