UPF50B250RV
Through Hole Resistor, 250 ohm, UPF Series, 500 mW, ± 0.1%, Axial Leaded, 300 V

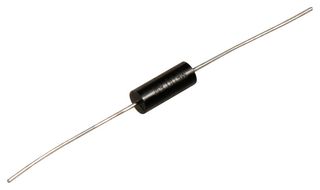

Image is for illustrative purposes only. Please refer to product description.
ManufacturerTE CONNECTIVITY - CGS
Manufacturer Part NoUPF50B250RVCopy
Manufacturer Standard Lead Time20 weeks
Order Code2332202
Product RangeUPF Series
Also Known As1-2176163-0, UPF50 0.1% 5PPM 250R
Your Part Number
269 In Stock
Need more?
269 Delivery in 3-4 Business Days(UK stock)
| Quantity | Price |
|---|---|
| 1+ | HK$72.670 |
| 5+ | HK$60.960 |
| 10+ | HK$49.240 |
| 25+ | HK$43.410 |
| 50+ | HK$41.350 |
| 200+ | HK$33.870 |
Price for:Each
Minimum: 1
Multiple: 1
HK$72.67
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
ManufacturerTE CONNECTIVITY - CGS
Manufacturer Part NoUPF50B250RVCopy
Manufacturer Standard Lead Time20 weeks
Order Code2332202
Product RangeUPF Series
Also Known As1-2176163-0, UPF50 0.1% 5PPM 250R
Technical Datasheet
Resistance250ohm
Product RangeUPF Series
Power Rating500mW
Resistance Tolerance± 0.1%
Resistor Case / PackageAxial Leaded
Voltage Rating300V
Resistor TechnologyMetal Film
Temperature Coefficient± 5ppm/°C
Resistor TypeHigh Precision
Product Diameter4mm
Product Length10.2mm
Product Width-
Operating Temperature Min-55°C
Operating Temperature Max125°C
Qualification-
SVHCNo SVHC (04-Feb-2026)
Product Overview
The UPF series metal film leaded High Precision Resistor suitable for use with precision equipment and measurement equipment.
- Excellent stability
- Very tight tolerance down to ±0.02%
Technical Specifications
Resistance
250ohm
Power Rating
500mW
Resistor Case / Package
Axial Leaded
Resistor Technology
Metal Film
Resistor Type
High Precision
Product Length
10.2mm
Operating Temperature Min
-55°C
Qualification
-
Product Range
UPF Series
Resistance Tolerance
± 0.1%
Voltage Rating
300V
Temperature Coefficient
± 5ppm/°C
Product Diameter
4mm
Product Width
-
Operating Temperature Max
125°C
SVHC
No SVHC (04-Feb-2026)
Technical Docs (1)
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:Taiwan
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:Taiwan
Country in which last significant manufacturing process was carried out
Tariff No:85332100
US ECCN:EAR99
EU ECCN:NLR
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (04-Feb-2026)
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.001701
