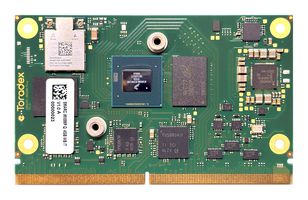

00971000
Computer-On-Module, MIMX8ML8CVNKZAB, SMARC iMX8M Plus, 4GB, 1.6GHz, ARM Cortex A53/M7
register your interest here
| Quantity | Price |
|---|---|
| 1+ | HK$1,996.150 |
Product Information
Product Overview
00971000 is a SMARC i.MX 8M Plus quad 4GB WB IT V1.0A (Initial Release) System-on-Module (SoM). The SMARC i.MX 8M Plus SoM is based on the NXP i.MX 8M Plus family of embedded System on Chips (SoCs). The top-tier i.MX 8M Plus quad features four Arm®Cortex®-A53 cores as the main processor cluster. The cores provide complete 64-bit Arm®v8-A support while maintaining seamless backward compatibility with 32-bit Arm®v7-A software. The main cores run at up to 1.8GHz for commercial graded products and 1.6GHz for industrial temperature range products.
- Mi.MX 8ML8CVNKZAB SoC, 4x A53 cores at 1600MHz CPU clock, 1x M7 cores at 800MHz CPU clock
- Features Arm® Neon™ MPE, NPU, ISP, VPU, 375 Mpixel/s HDR ISP performance
- Vivante GC7000UL GPU units, 8 Vega shader cores, Vulkan
- Interface: 2x I²S digital audio, 1x quad Lane + 1x dual lane MIPI® CSI-2, triple display controllers
- 1x (up to 4K) HDMI 2.0a, 1x (up to 1920x1080) LVDS 1x dual-channel, 1x Quad Lane MIPI® DSI
- 2 CAN-FD, 14 GPIO, 6 (5 + HDMI private I²C port) I²C, 2 SPI, 4 UART, SD/SDIO/MMC storage
- Network: Classic / LE 5.0 Bluetooth, 2x Gigabit Ethernet, 2.4/5 GHz Dual Band 2x2 Wi-Fi 5 (802.11ac)
- 32GB eMMC capacity, 3D TLC eMMC configuration, 2kbit 256 × 8bit I²C EEPROM capacity
- 4GB LPDDR4 RAM with 4000MT/s, 2GHz speed
- Module dimension is 82x50mm and temperature range from -40°C to +85°C
Technical Specifications
ARM Cortex A53 Quad Core, ARM Cortex M7 Single Core
SMARC iMX8M Plus
4GB
CAN-FD, Ethernet, I2C, MIPI CSI, PCIe, SPI, UART, USB
-40°C to 85°C
No SVHC (25-Jun-2025)
MIMX8ML8CVNKZAB
1.6GHz
Computer-On-Module MIMX8ML8CVNKZAB
Android, Torizon Embedded Linux, FreeRtos, Zephyr RTOS, QNX
-
